X90 series

X90 series

Solid Carbide Finishing Up & Downcut Spiral Bits for Nesting PLATINUM coating

Description

️ 2+2 or 3+3 flute spiral cutter
️ Compression - upward and downward chip ejection
️ Finishing geometry
️ PLATINUM coating
️ Special nesting carbide grade
️ 2+2
ø8 – 8-14m/min
ø10 – 12-16m/min
ø12 – 13-18m/min
RPM 18.000-24.000
️ 3+3
ø10 – 13-20m/min
ø12 – 15-22m/min
RPM 18.000-24.000

Application

Materials

Advantages

High wear resistance when machining hard materials. The combination of the PLATINIUM coating and the highest quality carbide allows to maintain very sharp cutting edges, eliminate chip sticking and significantly extends the life of the tool.

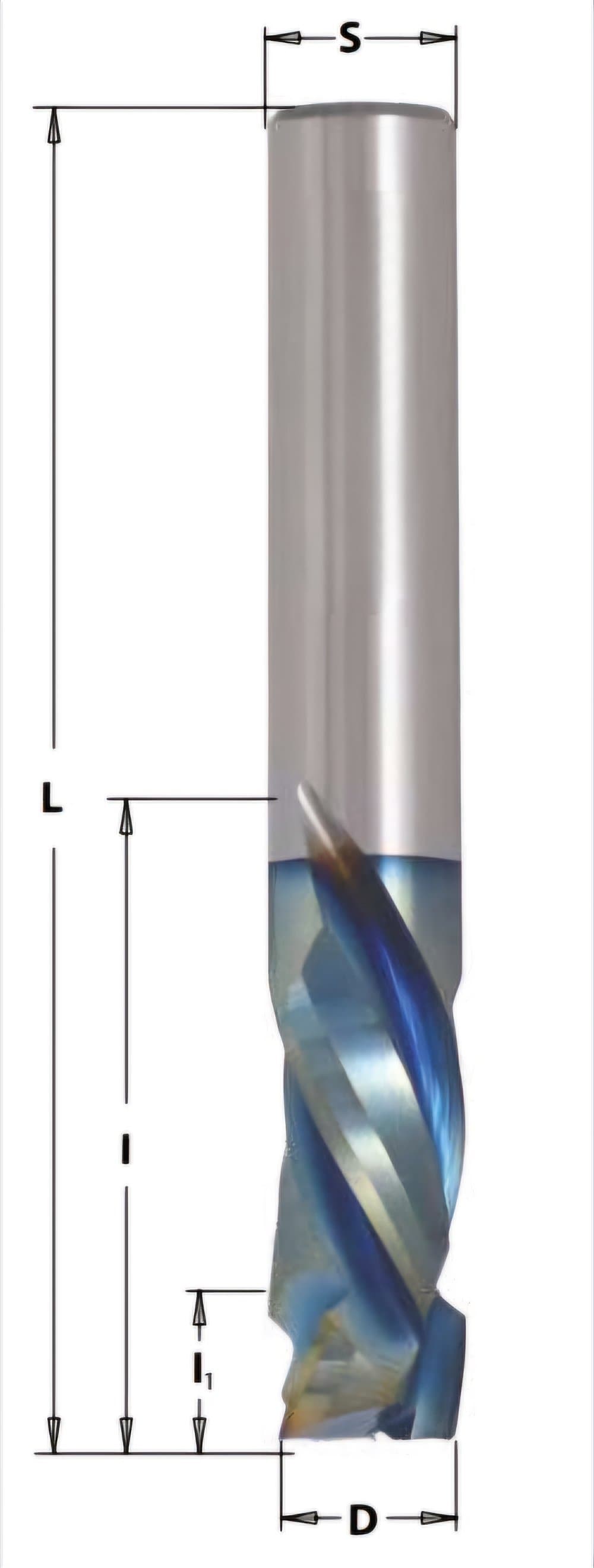

Diameter	Cutting length	Useful length	Overall length		Shank diameter		Number of flutes				Unit	Stock	Order
8	35	7	80	RH	8	Wykańczający	2+2	Pos./Neg.	X90.08.035.080.08PR	£49.58	pcs	10+
8	35	7	80	RH	8	Roughing	2+2	Pos./Neg.	X90.08.035.080.08PRz	£52.73	pcs	10+
10	35	7	80	RH	10	Wykańczający	2+2	Pos./Neg.	X90.10.035.080.10PR	£72.08	pcs	Soon
10	35	7	80	RH	10	Wykańczający	3+3	Pos./Neg.	X90.10.035.080.10PR3	£85.38	pcs	10+
10	35	7	80	RH	10	Roughing	2+2	Pos./Neg.	X90.10.035.080.10PRz	£72.80	pcs	10+
12	25	7	80	RH	12	Wykańczający	2+2	Pos./Neg.	X90.12.025.080.12PR	£85.38	pcs	10+
12	25	8	80	RH	12	Wykańczający	3+3	Pos./Neg.	X90.12.025.080.12PR3	£74.37	pcs	10+
12	35	8	80	RH	12	Wykańczający	2+2	Pos./Neg.	X90.12.035.080.12PR	£87.80	pcs	10+
12	35	8	80	RH	12	Wykańczający	3+3	Pos./Neg.	X90.12.035.080.12PR3	£75.95	pcs	10+
12	35	8	80	RH	12	Roughing	2+2	Pos./Neg.	X90.12.035.080.12PRz	£88.89	pcs	10+
16	52	9	110	RH	16	Wykańczający	2+2	Pos./Neg.	X90.16.052.110.16PR	£157.21	pcs	10+
16	52	9	110	RH	16	Wykańczający	3+3	Pos./Neg.	X90.16.052.110.16PR3	£196.51	pcs	8
16	52	9	110	RH	16	Roughing	2+2	Pos./Neg.	X90.16.052.110.16PRz	£165.07	pcs	10+

13 products
