Diamond Router Bits Z3+3 for Nesting

️ DTM is the best solution for cutting laminated and unlaminated particleboard.

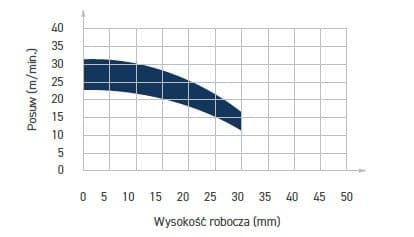

️ This cutter is able to work with high feed rates, reaching up to 30-30+ meters per minute. With good clamping, preferably in a heat shrink chuck, on a good CNC and with good dust extraction, it achieves these parameters.
️ To achieve optimal results, the DTM cutter requires good clamping, good CNC, and good dust extraction.
️ It is a tool designed for professional applications where speed and precision count.

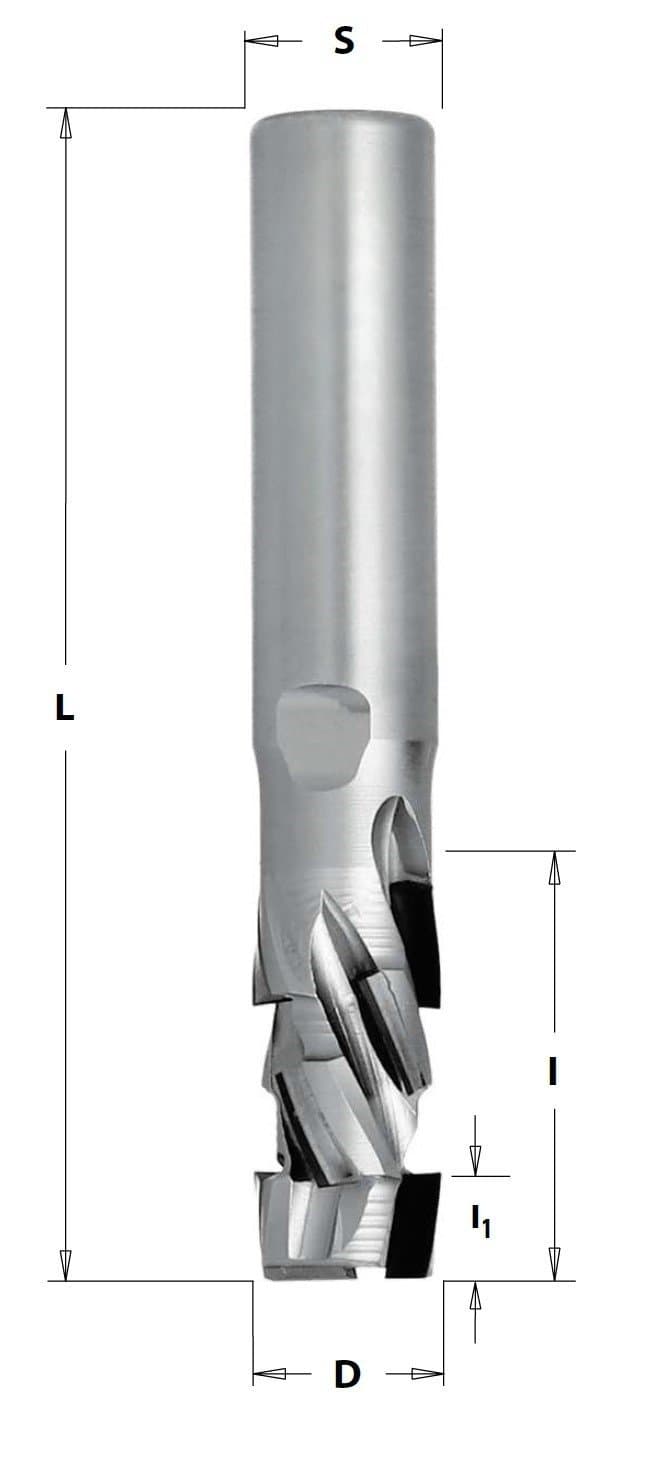

Diameter	Head diameter	Cutting length	Useful length	Overall length				Shank diameter	Number of flutes			Unit	Stock
12	2.5	19	8	64	10-19	RH	8+1 PCD	12	3+3	DTM.12.019.12.1DRN	£214.57	pcs	10+
12	2.5	19	8	64	16-18	RH	8+1 PCD	12	3+3	DTM.12.019.12.1DRP	£214.57	pcs	10+
12	2.5	21	7	66	10-20	RH	8+1 PCD	12	3+3	DTM.12.021.12.1DRN	£204.91£227.68-10%	pcs	Soon1
12	2.5	21	7	66	18-20	RH	8+1 PCD	12	3+3	DTM.12.021.12.1DRP	£227.68	pcs	10+
12	2.5	24	8	69	10-22	RH	11+1 PCD	12	3+3	DTM.12.024.12.1DRN	£256.29	pcs	Soon
12	2.5	24	8	69	19-22	RH	11+1 PCD	12	3+3	DTM.12.024.12.1DRP	£256.29	pcs	10+
16	2.5	25	7	84	10-22	RH	11+1 PCD	16	3+3	DTM.16.025.16.1DRN	£405.29	pcs	9
16	2.5	25	7	84	19-22	RH	11+1 PCD	16	3+3	DTM.16.025.16.1DRP	£405.29	pcs	5
16	2.5	35	7	94	10-33	RH	17+1 PCD	16	3+3	DTM.16.035.16.1DRN	£441.06	pcs	10+
16	2.5	35	7	94	30-33	RH	17+1 PCD	16	3+3	DTM.16.035.16.1DRP	£441.06	pcs	4

10 products

London Stock:Next day deliveryMain Stock:In stock — 4-7 daysDelivery to confirmSpecial order
