Diamond Router Bits Z3+1 – TURBO

Description

️ Three full PCD blades spread out on three helix wings

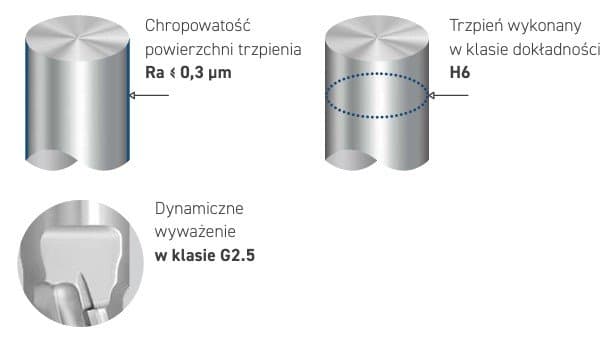

️ Body from special stainless steel
️ Can be resharpened:
H4 - (4-5 sharpening operations)
H4,5 - (5-6 sharpening operations)
️ PCD plunge tip at the bottom to drill

Application

Materials

Advantages

️ The DTE Turbo cutter has three full blades placed on three spirals. Its characteristic feature is a different design than the standard DTE. It has small inserts and a large space for chip evacuation.
️ DTE Turbo is mainly designed for contour milling. This means finishing the edges of materials that have been pre-cut and may be jagged.
️ It is used to achieve a perfect edge finish after initial cutting. The material is fixed on a block table, and the cutter finishes the edge from the side at very high feed rates.
️ Although some customers use it for cutting, this is not a recommended application due to other, more suitable cutters for this purpose.

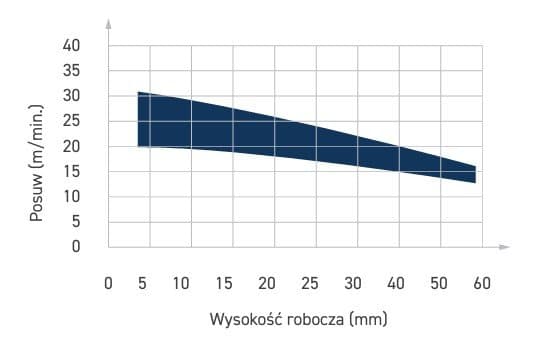

️ The DTE Turbo cutter is used at very high feed rates during contour milling.

Diameter	Head diameter	Cutting length	Useful length	Overall length			Shank diameter			Unit	Stock
16	4	20	7	84	RH	10+1 PCD	16	DTE.16.020.16.0SR	£152.37	pcs	3
16	4	25	7	86	LH	13+1 PCD	16	DTE.16.025.16.0SL	£163.26	pcs	2
16	4	25	7	86	RH	13+1 PCD	16	DTE.16.025.16.0SR	£163.26	pcs	10+
16	4	25	7	90	RH	13+1 PCD	20	DTE.16.025.20.0SR	£163.26	pcs	10+
16	4	30	7	91	RH	16+1 PCD	16	DTE.16.030.16.0SR	£190.47	pcs	10+
16	4	35	7	96	LH	18+1 PCD	16	DTE.16.035.16.0SL	£244.89	pcs	-
16	4	35	7	96	RH	18+1 PCD	16	DTE.16.035.16.0SR	£244.89	pcs	9
16	4	40	7	101	RH	21+2 PCD	16	DTE.16.040.16.0SR	£277.54	pcs	10+
18	4.5	25	7	87	RH	14+1 PCD	20	DTE.18.025.20.0SR	£163.26	pcs	9
18	4.5	30	7	92	RH	17+1 PCD	20	DTE.18.030.20.0SR	£190.47	pcs	2
18	4.5	35	7	97	RH	19+1 PCD	20	DTE.18.035.20.0SR	£244.89	pcs	5
18	4.5	45	7	107	RH	25+1 PCD	20	DTE.18.045.20.0SR	£293.86	pcs	2
20	4.5	25	7	86	LH	14+1 PCD	20	DTE.20.025.20.0SL	£163.26	pcs	8
20	4.5	25	7	86	RH	14+1 PCD	20	DTE.20.025.20.0SR	£163.26	pcs	10+
20	4.5	35	7	96	LH	19+1 PCD	20	DTE.20.035.20.0SL	£244.89	pcs	1
20	4.5	35	7	96	RH	19+1 PCD	20	DTE.20.035.20.0SR	£244.89	pcs	10+
20	4.5	40	7	101	LH	22+1 PCD	20	DTE.20.040.20.0SL	£277.54	pcs	6
20	4.5	40	7	101	RH	22+1 PCD	20	DTE.20.040.20.0SR	£277.54	pcs	5
20	4.5	45	7	111	LH	26+1 PCD	20	DTE.20.045.20.0SL	£317.81	pcs	6
20	4.5	45	7	111	RH	26+1 PCD	20	DTE.20.045.20.0SR	£317.81	pcs	10+
20	4.5	50	7	110	LH	28+1 PCD	20	DTE.20.050.20.0SL	£353.73	pcs	10+
20	4.5	50	7	110	RH	28+1 PCD	20	DTE.20.050.20.0SR	£353.73	pcs	10+
20	4.5	55	7	116	RH	31+1 PCD	20	DTE.20.055.20.0SR	£391.82	pcs	10+
20	4.5	65	7	130	LH	38+1 PCD	20	DTE.20.065.20.0SL	£435.36	pcs	1
20	4.5	65	7	130	RH	38+1 PCD	20	DTE.20.065.20.0SR	£435.36	pcs	7
25	4.5	25	7	88	LH	14+1 PCD	20	DTE.25.025.20.0SL	£163.26	pcs	2
25	4.5	25	7	88	RH	14+1 PCD	20	DTE.25.025.20.0SR	£163.26	pcs	9
25	4.5	35	7	96	LH	20+1 PCD	25	DTE.25.035.25.0SL	£244.89	pcs	3
25	4.5	35	7	96	RH	20+1 PCD	25	DTE.25.035.25.0SR	£244.89	pcs	2
25	4.5	45	7	111	LH	26+1 PCD	20	DTE.25.045.20.0SL	£317.81	pcs	4
25	4.5	45	7	111	RH	26+1 PCD	20	DTE.25.045.20.0SR	£317.81	pcs	10+
25	4.5	45	7	111	LH	26+1 PCD	25	DTE.25.045.25.0SL	£317.81	pcs	5
25	4.5	45	7	111	RH	26+1 PCD	25	DTE.25.045.25.0SR	£317.81	pcs	10+
25	4.5	65	7	130	RH	38+1 PCD	25	DTE.25.065.25.0SR	£435.36	pcs	1

34 products

Sizes in inches

				Head diameter						Unit	Stock
5/8	1 1/8	7	3/4	4	Stainless steel	RH	11+1 PCD	DTE.16.027.19.5SR	£146.93	pcs	5
3/4	1 5/8	7	3/4	4	Stainless steel	RH	22+1 PCD	DTE.19.040.19.5SR	£293.86	pcs	5
3/4	2	6,5	3/4	4	Stainless steel	RH	18+1 PCD	DTE.19.049.19.5SR	£293.86	pcs	10+

3 products
