DTN series

DTN series

Diamond Router Bits Z2+2

Description

️ Two full PCD blades spread out on four helix wings

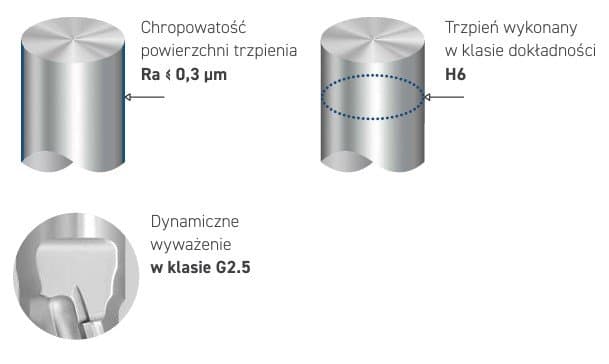

️ Body made from stainless steel > 28 HRC
️ Can be resharpened:
H2,5 - (2-3 sharpening operations)
️ HM plunge tip at the bottom to drill

Application

Materials

Advantages

️ DTN cutters have two full blades and four spirals. It is an evolution of the DTA cutter, where one more tooth was added.
️ DTN, like DT1 and DT2, is very versatile and can cut various materials.

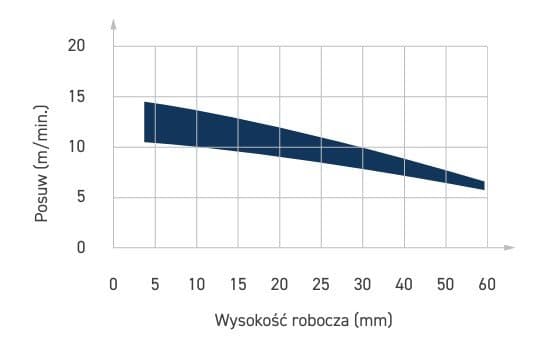

️ This cutter is suitable for light nesting in the range of 10-12 meters per minute. It is a good solution for customers who need something better than DTA, but don't require very high speeds.
️ It can be used for cutting various materials.
️ DTN is able to cut virtually everything, suggesting that it is designed to work with a wide range of materials.
️ DTN cutters can operate with a feed rate of up to 10-12 meters per minute for light nesting.
️ DTN cutters are available in many sizes and are very popular.

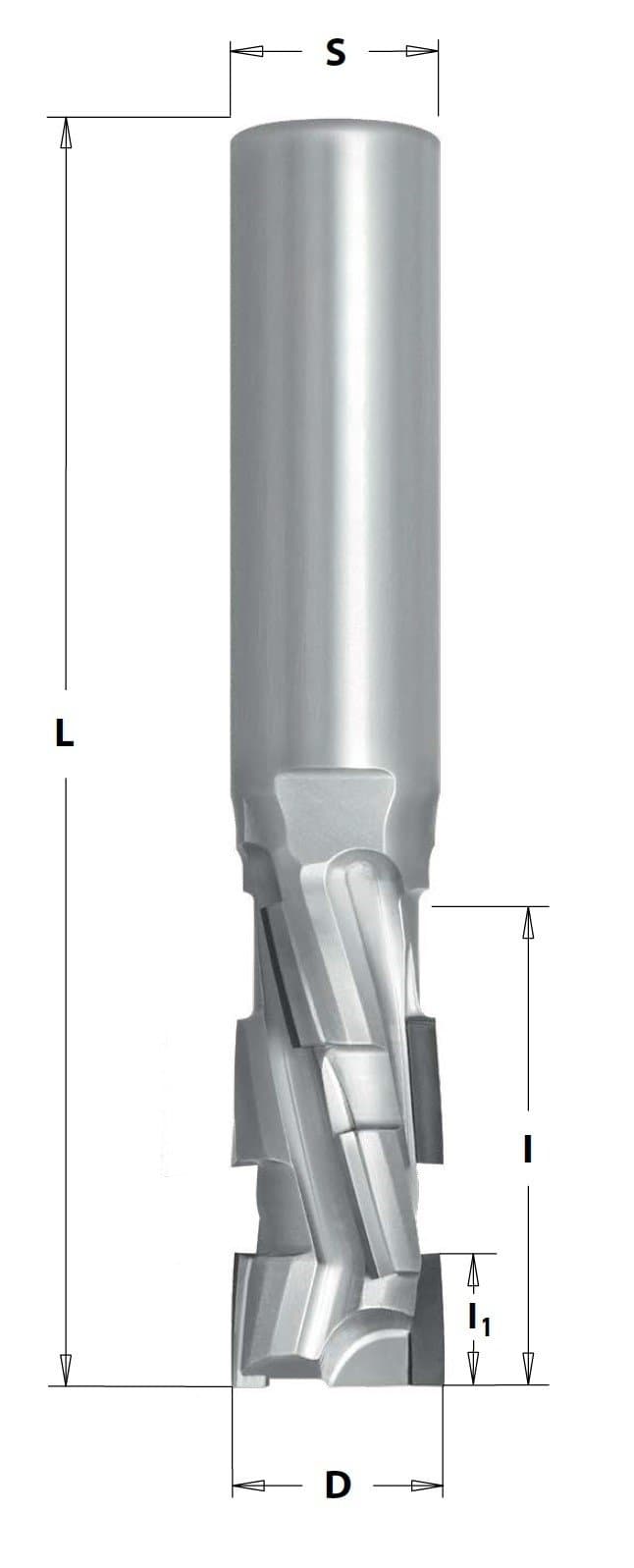

Diameter	Head diameter	Cutting length	Useful length	Overall length			Shank diameter			Unit	Stock
12	2.5	25	9,5 / 9,5	77	LH	6 DIA + 1 HM	12	DTN.12.025.12.0SL	£81.63	pcs	10+
12	2.5	25	9,5 / 9,5	78	RH	6 DIA + 1 HM	12	DTN.12.025.12.0SR	£81.63	pcs	10+
12	2.5	25	9,5 / 9,5	88	LH	6 DIA + 1 HM	16	DTN.12.025.16.0SL	£81.63	pcs	2
12	2.5	25	9,5 / 9,5	87	RH	6 DIA + 1 HM	16	DTN.12.025.16.0SR	£81.63	pcs	10+
12	2.5	25	9,5 / 9,5	89	LH	6 DIA + 1 HM	20	DTN.12.025.20.0SL	£81.63	pcs	4
12	2.5	25	9,5 / 9,5	89	RH	6 DIA + 1 HM	20	DTN.12.025.20.0SR	£81.63	pcs	10+
12	2.5	35	9,5 / 9,5	94	LH	8 DIA + 1 HM	12	DTN.12.035.12.0SL	£107.15	pcs	10+
12	2.5	35	9,5 / 9,5	94	RH	8 DIA + 1 HM	12	DTN.12.035.12.0SR	£107.15	pcs	10+
12	2.5	35	9,5 / 9,5	98	LH	8 DIA + 1 HM	20	DTN.12.035.20.0SL	£107.15	pcs	8
12	2.5	35	9,5 / 9,5	99	RH	8 DIA + 1 HM	20	DTN.12.035.20.0SR	£107.15	pcs	10+
16	2.5	25	9,5 / 9,5	86	LH	6 DIA + 1 HM	16	DTN.16.025.16.0SL	£81.63	pcs	10+
16	2.5	25	9,5 / 9,5	86	RH	6 DIA + 1 HM	16	DTN.16.025.16.0SR	£81.63	pcs	10+
16	2.5	25	9,5 / 9,5	87	LH	6 DIA + 1 HM	20	DTN.16.025.20.0SL	£81.63	pcs	10+
16	2.5	25	9,5 / 9,5	86	RH	6 DIA + 1 HM	20	DTN.16.025.20.0SR	£81.63	pcs	10+
16	2.5	35	10 / 10,5	94	LH	8 DIA + 1 HM	16	DTN.16.035.16.0SL	£107.15	pcs	7
16	2.5	35	10 / 10,5	94	RH	8 DIA + 1 HM	16	DTN.16.035.16.0SR	£107.15	pcs	10+
16	2.5	35	10,5 / 10,5	95	LH	8 DIA + 1 HM	20	DTN.16.035.20.0SL	£107.15	pcs	10+
16	2.5	35	10,5 / 10,5	97	RH	8 DIA + 1 HM	20	DTN.16.035.20.0SR	£107.15	pcs	10+
16	2.5	45	10,5	103	LH	10 DIA + 1 HM	16	DTN.16.045.16.0SL	£134.96	pcs	2
16	2.5	45	10,5	105	RH	10 DIA + 1 HM	16	DTN.16.045.16.0SR	£134.96	pcs	10+
16	2.5	45	10,5	107	LH	10 DIA + 1 HM	20	DTN.16.045.20.0SL	£134.96	pcs	9
16	2.5	45	10,5	106	RH	10 DIA + 1 HM	20	DTN.16.045.20.0SR	£134.96	pcs	10+
16	2.5	55	10,5	117	LH	12 DIA + 1 HM	16	DTN.16.055.16.0SL	£174.14	pcs	10+
16	2.5	55	10,5	114	RH	12 DIA + 1 HM	16	DTN.16.055.16.0SR	£174.14	pcs	10+
18	2.5	25	9	84	LH	6 DIA + 1 HM	20	DTN.18.025.20.0SL	£81.63	pcs	4
18	2.5	25	9	84	RH	6 DIA + 1 HM	20	DTN.18.025.20.0SR	£81.63	pcs	10+
18	2.5	35	10	94	LH	8 DIA + 1 HM	20	DTN.18.035.20.0SL	£107.15	pcs	5
18	2.5	35	10	97	RH	8 DIA + 1 HM	20	DTN.18.035.20.0SR	£107.15	pcs	7
20	2.5	25	10	90	LH	6 DIA + 1 HM	20	DTN.20.025.20.0SL	£81.63	pcs	10+
20	2.5	25	10	85	RH	6 DIA + 1 HM	20	DTN.20.025.20.0SR	£81.63	pcs	10+
20	2.5	35	10	95	LH	8 DIA + 1 HM	20	DTN.20.035.20.0SL	£107.15	pcs	10+
20	2.5	35	10	95	RH	8 DIA + 1 HM	20	DTN.20.035.20.0SR	£107.15	pcs	10+
20	2.5	45	10	103	LH	10 DIA + 1 HM	20	DTN.20.045.20.0SL	£134.96	pcs	10+
20	2.5	45	10	104	RH	10 DIA + 1 HM	20	DTN.20.045.20.0SR	£134.96	pcs	10+
20	2.5	55	10	113	LH	12 DIA + 1 HM	20	DTN.20.055.20.0SL	£157.82	pcs	10+
20	2.5	55	10	113	RH	12 DIA + 1 HM	20	DTN.20.055.20.0SR	£157.82	pcs	10+
20	2.5	65	10	129	RH	14 DIA + 1 HM	20	DTN.20.065.20.0SR	£212.24	pcs	10+
25	2.5	25	9	97	LH	6 DIA + 1 HM	25	DTN.25.025.25.0SL	£81.63	pcs	3
25	2.5	25	9	87	RH	6 DIA + 1 HM	25	DTN.25.025.25.0SR	£81.63	pcs	10+

39 products

Sizes in inches

				Head diameter	Cutting length		Overall length					Unit	Stock
1/2	1	9.5	1/2	2.5		Stainless steel		RH	6PCD + 1HM	DTN.12.025.12.5SR	£81.63	pcs	10+
1/2	1 1/8	8.5	1/2	2.5		Stainless steel		RH	7PCD + 1HM	DTN.12.030.12.5SR	£108.84	pcs	10+
1/2	1 3/8	9.5	1/2	2.5		Stainless steel		RH	8PCD + 1HM	DTN.12.035.12.5SR	£107.15	pcs	10+
5/8	1 1/8	9	5/8	2.5		Stainless steel		RH	7PCD + 1HM	DTN.15.030.19.5SR	£108.84	pcs	5
3/4	1 3/4	8	3/4	2.5		Stainless steel		RH	10PCD + 1HM	DTN.19.045.19.5SR	£134.96	pcs	10+
3/4	2	7.5	3/4	2.5		Stainless steel		RH	16PCD + 1HM	DTN.19.050.19.5SR	£217.68	pcs	2
3/8			3/8	2.5	25	DENSIMET®	74	RH	6PCD + 1HM	DTN.09.025.09.5DR	£214.57	pcs	5
3/4	1 3/8	8	3/4	2.5		Stainless steel		RH	10PCD + 1HM	DTN.19.035.19.5SR	£107.15	pcs	10+
3/4	1 3/4	8	3/4	2.5		Stainless steel		RH	14PCD + 1HM	DTN.19.044.19.5SR	£359.08	pcs	10+

9 products
