DTA series

DTA series

Diamond Router Bits Z1+1

Description

️ One full PCD blade spread out on three helix wings

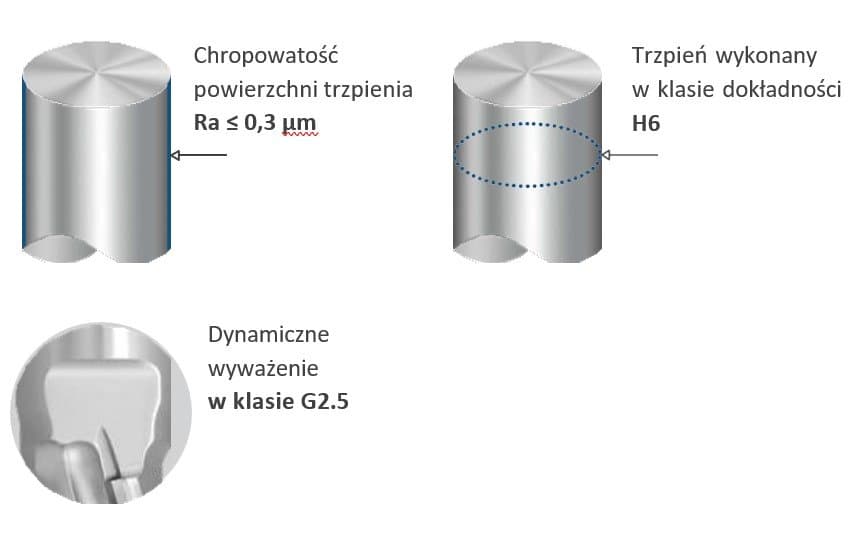

️ Body made from stainless steel > 28 HRC or tungsten carbide
hardness of 93,8 HRA
️ Can be resharpened: H2,5 - (2-3 sharpening operations)
️ HM or PCD plunge tip at the bottom to drill

Application

Materials

Advantages

️ The DTA cutter has one full insert and three spirals.
️ It is designed for simple, light cutting in wood-based materials. It is a universal and inexpensive tool, ideal as an entry level for customers who are just starting to work with diamond tools.
️ The DTA cutter is designed for working with wood-based materials.

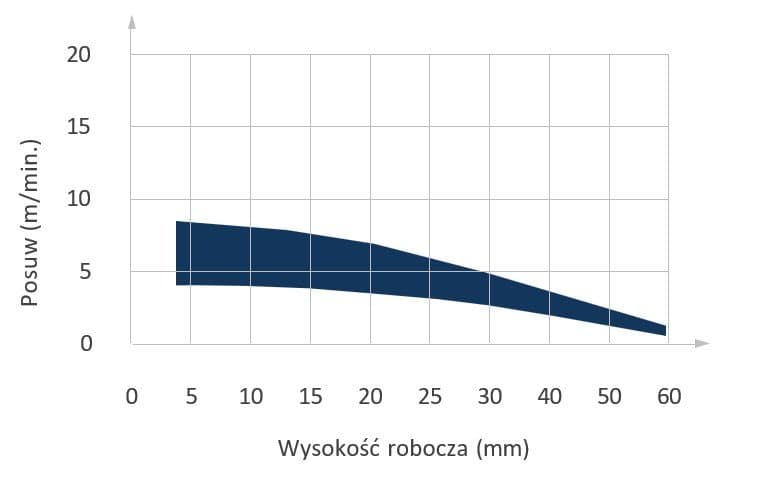

️ The recommended feed rate for this cutter is about 5 meters per minute depending on the diameter.
️ DTA with carbide body: This version has two incomplete inserts and is axial. It is a more economical version of the DTS cutter, designed for basic tasks.
️ The DTA cutter is designed for simple cutting and is not ideal for more advanced applications. It's a universal tool, but not the best when higher productivity is needed.

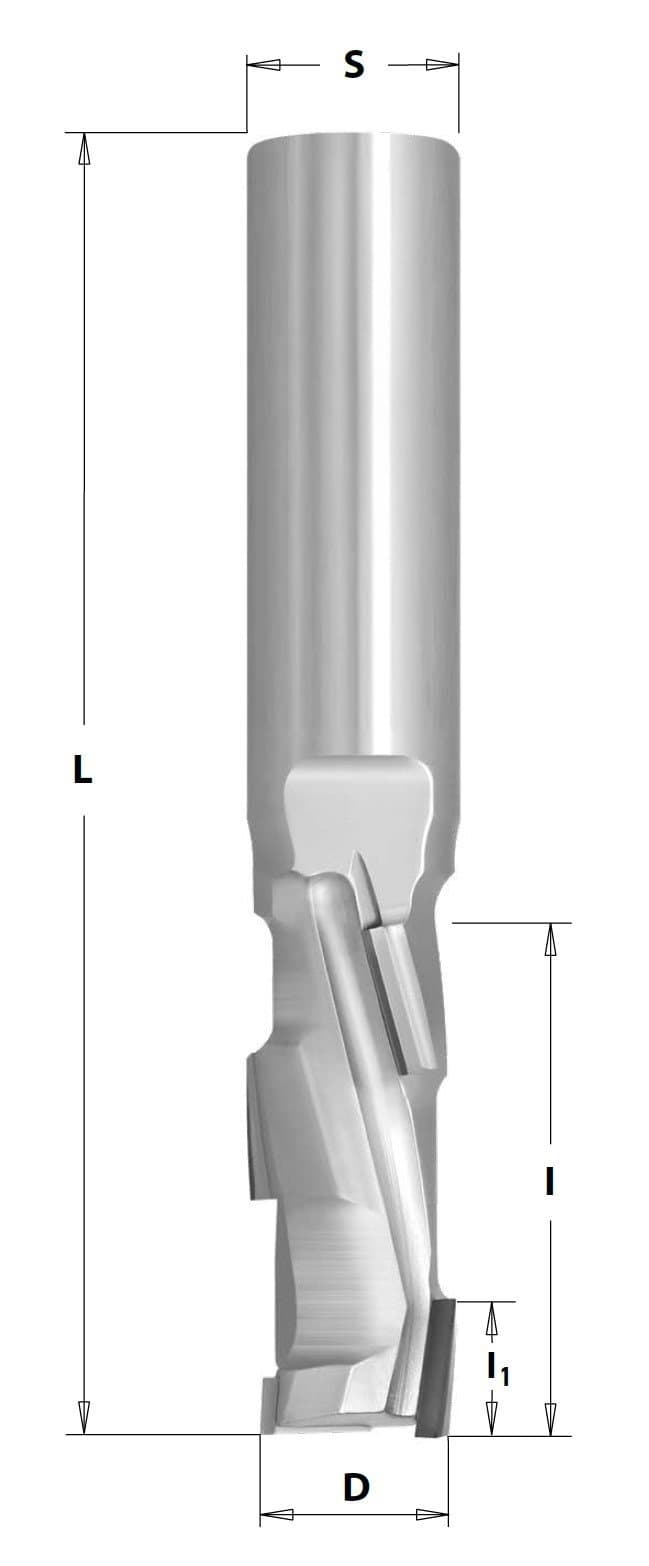

Diameter	Head diameter	Cutting length		Overall length			Shank diameter			Unit	Stock
6	2.5	16	HM	71	RH	2 DIA + 1 HM	8	DTA.06.016.08.0MR	£119.20	pcs	10+
8	2.5	21	HM	80	RH	2 DIA + 1 HM	8	DTA.08.021.08.0MR	£61.99	pcs	10+
8	2.5	21	HM	76	RH	2 DIA + 1 HM	12	DTA.08.021.12.0MR	£113.24	pcs	10+
8	1.5	21	Stainless steel	69	RH	3 DIA + 1 HM	12	DTA.08.021.12.0SR	£43.54	pcs	10+
8	2.5	27	HM	80	LH	3 DIA + 1 HM	8	DTA.08.027.08.0ML	£86.85	pcs	10+
8	2.5	27	HM	80	RH	3 DIA + 1 HM	8	DTA.08.027.08.0MR	£86.85	pcs	10+
8	2.5	36	HM	80	LH	4 DIA + 1 HM	8	DTA.08.036.08.0ML	£115.04	pcs	10+
8	2.5	36	HM	80	RH	4 DIA + 1 HM	8	DTA.08.036.08.0MR	£115.04	pcs	Soon
10	2.5	15	Stainless steel	63	RH	1 DIA + 1 HM	12	DTA.10.015.12.0SR	£29.39	pcs	10+
10	2.5	21	Stainless steel	69	RH	3 DIA + 1 HM	12	DTA.10.021.12.0SR	£43.54	pcs	10+
10	2.5	25	Stainless steel	76	LH	3 DIA + 1 HM	12	DTA.10.025.12.0SL	£40.82	pcs	10+
10	2.5	25	Stainless steel	75	RH	3 DIA + 1 HM	12	DTA.10.025.12.0SR	£40.82	pcs	10+
10	2.5	27	HM	90	RH	3 DIA + 1 HM	10	DTA.10.027.10.0MR	£97.16	pcs	10+
10	2.5	35	Stainless steel	83	LH	4 DIA + 1 HM	12	DTA.10.035.12.0SL	£54.42	pcs	10+
10	2.5	35	Stainless steel	83	RH	4 DIA + 1 HM	12	DTA.10.035.12.0SR	£54.42	pcs	10+
12	2.5	21	Stainless steel	69	RH	3 DIA + 1 HM	12	DTA.12.021.12.0SR	£38.09	pcs	10+
12	2.5	25	Stainless steel	78	LH	3 DIA + 1 HM	12	DTA.12.025.12.0SL	£40.82	pcs	10+
12	2.5	25	Stainless steel	76	RH	3 DIA + 1 HM	12	DTA.12.025.12.0SR	£40.82	pcs	10+
12	2.5	27	HM	80	RH	3 DIA + 1 HM	12	DTA.12.027.12.0MR	£104.73	pcs	10+
12	2.5	35	Stainless steel	87	LH	4 DIA + 1 HM	12	DTA.12.035.12.0SL	£54.42	pcs	9
12	2.5	35	Stainless steel	87	RH	4 DIA + 1 HM	12	DTA.12.035.12.0SR	£54.42	pcs	10+
12	2.5	45	Stainless steel	100	LH	5 DIA + 1 HM	12	DTA.12.045.12.0SL	£67.96	pcs	9
12	2.5	45	Stainless steel	93	RH	5 DIA + 1 HM	12	DTA.12.045.12.0SR	£67.96	pcs	10+
16	2.5	25	Stainless steel	84	LH	3 DIA + 1 HM	16	DTA.16.025.16.0SL	£40.82	pcs	10+
16	2.5	25	Stainless steel	85	RH	3 DIA + 1 HM	16	DTA.16.025.16.0SR	£40.82	pcs	10+
16	2.5	35	Stainless steel	96	LH	4 DIA + 1 HM	16	DTA.16.035.16.0SL	£54.42	pcs	10+
16	2.5	35	Stainless steel	95	RH	4 DIA + 1 HM	16	DTA.16.035.16.0SR	£54.42	pcs	10+
16	2.5	45	Stainless steel	105	LH	5 DIA + 1 HM	16	DTA.16.045.16.0SL	£67.96	pcs	10+
16	2.5	45	Stainless steel	105	RH	5 DIA + 1 HM	16	DTA.16.045.16.0SR	£67.96	pcs	Soon
16	2.5	55	Stainless steel	114	LH	6 DIA + 1 HM	16	DTA.16.055.16.0SL	£81.63	pcs	10+
16	2.5	55	Stainless steel	114	RH	6 DIA + 1 HM	16	DTA.16.055.16.0SR	£81.63	pcs	10+
18	2.5	25	Stainless steel	80	LH	3 DIA + 1 HM	20	DTA.18.025.20.0SL	£40.82	pcs	6
18	2.5	25	Stainless steel	87	RH	3 DIA + 1 HM	20	DTA.18.025.20.0SR	£40.82	pcs	10+
18	2.5	35	Stainless steel	90	LH	4 DIA + 1 HM	20	DTA.18.035.20.0SL	£54.42	pcs	3
18	2.5	35	Stainless steel	97	RH	4 DIA + 1 HM	20	DTA.18.035.20.0SR	£54.42	pcs	10+
18	2.5	45	Stainless steel	107	LH	5 DIA + 1 HM	20	DTA.18.045.20.0SL	£67.96	pcs	10+
18	2.5	45	Stainless steel	107	RH	5 DIA + 1 HM	20	DTA.18.045.20.0SR	£67.96	pcs	10+
18	2.5	45	Stainless steel	108	LH	5 DIA + 1 HM	25	DTA.18.045.25.0SL	£70.75	pcs	10+
18	2.5	45	Stainless steel	108	RH	5 DIA + 1 HM	25	DTA.18.045.25.0SR	£70.75	pcs	10+
20	2.5	25	Stainless steel	80	LH	3 DIA + 1 HM	20	DTA.20.025.20.0SL	£40.82	pcs	10+
20	2.5	25	Stainless steel	85	RH	3 DIA + 1 HM	20	DTA.20.025.20.0SR	£40.82	pcs	9
20	2.5	35	Stainless steel	95	LH	4 DIA + 1 HM	20	DTA.20.035.20.0SL	£54.42	pcs	5
20	2.5	35	Stainless steel	95	RH	4 DIA + 1 HM	20	DTA.20.035.20.0SR	£54.42	pcs	Soon
20	2.5	45	Stainless steel	104	LH	5 DIA + 1 HM	20	DTA.20.045.20.0SL	£67.96	pcs	10+
20	2.5	45	Stainless steel	104	RH	5 DIA + 1 HM	20	DTA.20.045.20.0SR	£67.96	pcs	10+
20	2.5	55	Stainless steel	113	LH	6 DIA + 1 HM	20	DTA.20.055.20.0SL	£81.63	pcs	10+
20	2.5	55	Stainless steel	113	RH	6 DIA + 1 HM	20	DTA.20.055.20.0SR	£81.63	pcs	10+
20	2.5	65	Stainless steel	120	LH	7 DIA + 1 HM	20	DTA.20.065.20.0SL	£103.40	pcs	3
20	2.5	65	Stainless steel	129	RH	7 DIA + 1 HM	20	DTA.20.065.20.0SR	£103.40	pcs	10+
20	2.5	72	Stainless steel	136	RH	8 DIA + 1 HM	20	DTA.20.072.20.0SR	£125.16	pcs	10+

Sizes in inches

			Head diameter						Unit	Stock
3/8	1 1/2	3/8	2.5	Stainless steel	RH	4 PCD + 1	DTA.09.038.09.5SR	£56.60	pcs	10+
1/2	1	1/2	2.5	Stainless steel	RH	3 PCD + 1	DTA.12.025.12.5SR	£43.54	pcs	10+
1/2	3 1/8	1/2	2.5	Stainless steel	RH	4 PCD + 1	DTA.12.028.12.5SR	£40.82	pcs	10+
1/2	1 3/8	1/2	2.5	Stainless steel	RH	4 PCD + 1	DTA.12.035.12.5SR	£54.42	pcs	6
1/2	1 1/2	1/2	2.5	Stainless steel	RH	4 PCD + 1	DTA.12.038.12.5SR	£59.86	pcs	9
1/2	1 3/4	1/2	2.5	Stainless steel	RH	5 PCD + 1	DTA.12.045.12.5SR	£67.96	pcs	5
3/4	2 3/4	3/4	2.5	Stainless steel	RH	6 PCD + 1	DTA.19.050.19.5SR	£74.01	pcs	9

7 products
