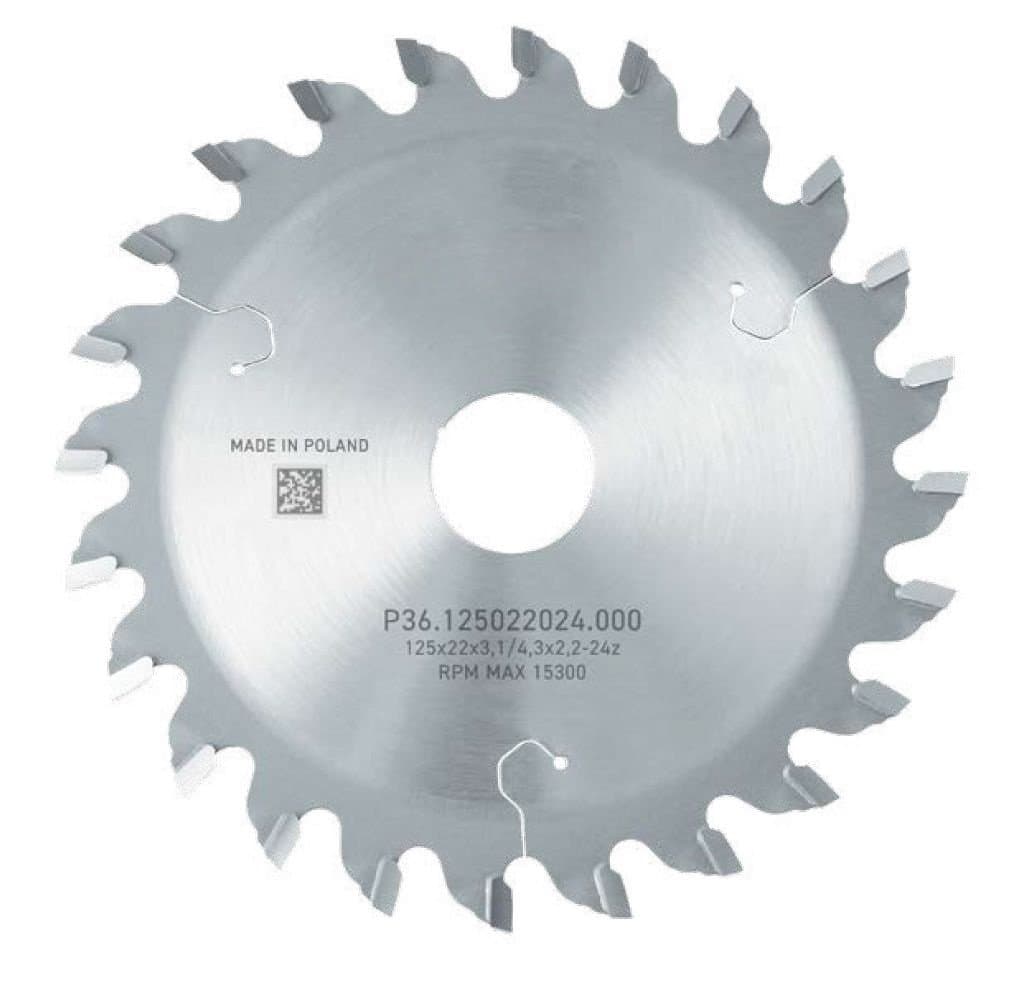

HM Conical Scorers for Panel Saws
For undercutting laminated panels to ensure the highest quality edges of the cut material.
Diameter | Pitch | Number of flutes | Unit | Stock | Order | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 20 | 4.4 | FELDER | 3.2 | 36 | 4.4-5.6 | 6° | P36.150020036.002 | £61.54 | pcs | 10+ | ||
| 150 | 30 | 4.4 | SCM, STETON, FELDER | 3.2 | 36 | 4.4-5.6 | 6° | P36.150030036.003 | £55.87 | pcs | 10+ | ||
| 150 | 45 | 4.4 | HOMAG | 3.2 | PH:2/9/58 + 2/11/70 | 36 | 4.4-5.6 | 6° | P36.150045036.000 | £55.87 | pcs | 10+ | |
| 160 | 55 | 4.4 | GABIANI, MACMAZZA, SCM | 3.2 | PH:3/11/70 | 36 | 4.4-5.6 | 6° | P36.160055036.000 | £56.41 | pcs | 10+ | |
| 180 | 30 | 4.4 | PANHANS, HOLZ-HER | 3.2 | PH:2/10/60 | 36 | 4.4-5.6 | 6° | P36.180030036.000 | £56.41 | pcs | 10+ | |
| 180 | 45 | 4.4 | HOLZMA | 3.2 | PH:2/10/60 | 36 | 4.4-5.6 | 6° | P36.180045036.001 | £56.41 | pcs | 10+ | |
| 180 | 45 | 4.8 | HOLZMA | 3.5 | PH:2/10/60 | 36 | 4.8-6.0 | 6° | P36.180045036.010 | £61.45 | pcs | 10+ | |
| 200 | 20 | 4.4 | SCHELLING | 3.2 | PH:2/11/66 | 36 | 4.4-5.6 | 6° | P36.200020036.005 | £65.58 | pcs | 10+ | |
| 200 | 45 | 4.4 | HOLZMA | 3.2 | PH:2/10/60 | 36 | 4.4-5.6 | 6° | P36.200045036.000 | £55.87 | pcs | 10+ | |
| 200 | 45 | 4.8 | HOLZMA | 3.5 | 36 | 4.8-6.0 | 6° | P36.200045036.010 | £83.15 | pcs | 10+ | ||
| 200 | 50 | 4.3 | MASTERWOOD | 3.2 | 2./7/80 | 36 | 4.3-5.5 | 5° | P36.200050036.001 | £55.87 | pcs | 10+ | |
| 200 | 65 | 4.4 | SELCO | 3.2 | PH05 | 36 | 4.4-5.6 | 6° | P36.200065036.000 | £55.87 | pcs | 10+ | |
| 200 | 80 | 4.4 | GABBIANI | 3.2 | PH:2/14/110 | 36 | 4.4-5.6 | 6° | P36.200080036.000 | £65.58 | pcs | 10+ | |
| 300 | 30 | 4.4 | SCHELLING | 3.2 | PH:2/10/60 + 2/14/110 + 2/13/94 | 48 | 4.4-5.9 | 6° | P36.300030048.001 | £81.94 | pcs | 10+ |
